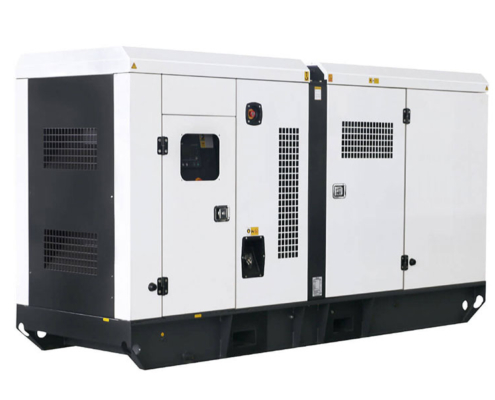

Silent type 50Hz 200kw 250kva Perkins 1306C-E87TAG6 engine diesel generator set
Water cooling silent type 50Hz 200kw 250kva Perkins engine diesel generator set from China exporter, powered by Perkins 1306C-E87TAG6 diesel engine, elastic coupling with Meccalte alternator, optional Deepsea 6020 control panel, suitable for Cyprus and other countries. Gosun is your best generator set partner from China.
Technical Specifications
GENERATOR SET OUTPUT INFORMATION
| Model No. | Voltage | Hz | Phase & Wires | Power Factor (cosφ) |
Rated Current ( A) |
Standby Power ( KW / KVA ) |
Rated Power ( KW / KVA) |
| 200GF-P50 | 440/254 | 50 | 3 phases 4 wires | 0.8 lagging | 361 | 220/275 | 200/250 |
| 200GF-P50 | 415/240 | 50 | 3 phases 4 wires | 0.8 lagging | 383 | 220/275 | 200/250 |
| 200GF-P50 | 400/230 | 50 | 3 phases 4 wires | 0.8 lagging | 397 | 220/275 | 200/250 |
| 200GF-P50 | 380/220 | 50 | 3 phases 4 wires | 0.8 lagging | 418 | 220/275 | 200/250 |
ENGINE SPECIFICATIONS
ENGINE PARAMETERS
| Manufacturer / Model | Perkins 1306C-E87TAG6, 4-cycle |
| Air Intake System | Turbo charged, air to air charge cooling |
| Fuel System | DIRECT |
| Cylinder Arrangement | 6 vertical, in line |
| Engine Displacement | 8.7 L |
| Bore*Stroke | 116.6*135.9 (mm) |
| Compression Ration | 16.9 : 1 |
| Rated Speed (RPM) | 1500rpm |
| Engine Max Power | 246KW |
| Governor Type | Electronic |
FUEL CONSUMPTION
| 100% Load | 183 g/kw.h |
| 75% Load | 200 g/kw.h |
| 50% Load | 200 g/kw.h |
LUBE SYSTEM
| Lube Consumption | 0.1% ( As a percentage of fuel consumption ) |
| Oil Pressure At Rated Speed | 276-483 kPa |
ALTERNATOR SPECIFICATIONS
| Number Of Phases | 3 |
| Connection Type | 3 phase 4 wires, Y type connection |
| Bearing Numbers | 1 |
| Power Factor (cosφ) | 0.8 (lagging) |
| Protection Grade | IP23 |
| Altitude | ≤ 1000 meters |
| Excitation Mode | Brushless, self exciting |
| Insulation Grade | H |
| Rated Capacity | 250 KVA |
| Alternator Efficiency | 92.7% |
CONTROL PANEL FEATURES ( DSE7320 MKII AUTO MAINS FAILURE / UTILITY CONTROL MODULE )
Support for O-10 V & 4-20mA oil pressure senders.
Large back-lit icon LCD display.
Heated display option.
3-phase generator sensing.
3-phase generator and mains (utility) sensing
Breaker control buttons on front fascia.
Generator & load power monitoring (kW, kV A, kV Ar, pf).
Generator overload protection (kW).
Generator/load current monitoring & protection
Configurable analogue/digital inputs.
Configurable DC, volt- free and staged loading outputs.
CAN, MPU & alternator speed sensing ( selectable depending on engine type).
Tier 4 CAN engine support.
NOISE LEVEL
| @ 7 meters | 68~75 DB |
DIMENSION & WEIGHT
| Silent type size | 3590*1250*2050 (mm) |
| Gross Weight | 2800 kg |
MANUFACTURING STANDARDS
All our diesel generator are designed and manufactured in accordance with international standards, such as EN60O34, BS50O0, IEC34-1, GB755, VDE0530, CSA22.2, AS1359, as well as the requirements of ISO9001 and ISO14O01.
SUPPLY SCOPE
1. Perkins 1306C-E87TAG6 engine
2. Alternator
3. DSE7320 MKII control panel
4. standard radiator mounted on skid
5. high grade steel base frame (optional base fuel tank )
6. electronic governor
7. battery charger
8. cranking motor
9. english operation manual, maintenance and test reports.
10. accessories: rubber anti-vibrator, muffler, elbow, expansion joints, battery cables, battery
NOTICE
Pictures associated with this page are for illustration only, they may not reflect the actual product, please get in touch with us to get the exact product image. The above technical specifications are for reference only, we reserved the right to change the configuration without notifying website visitors, please contact our sales or technical team for final confirmation.
