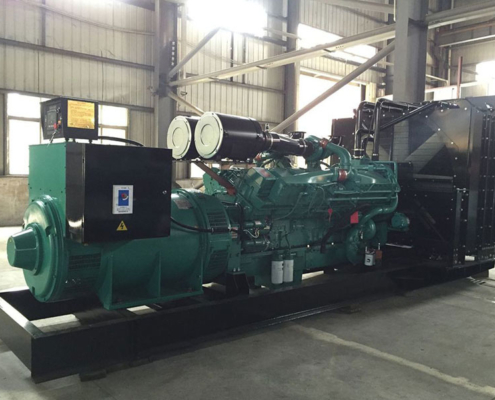

open type 50Hz 1000kw 1250kva Cummins KTA50-G3 engine diesel generator set

GENERATOR SET OUTPUT INFORMATION

Model No.	Voltage	Hz	Phase & Wires	Power Factor (cosφ)	Standby Current ( A)	Standby Power ( KW / KVA )	Rated Power ( KW / KVA)
1000GF-C50	440/254	50	3 phases 4 wires	0.8 lagging	1804	1100/1375	1000/1250
1000GF-C50	415/240	50	3 phases 4 wires	0.8 lagging	1913	1100/1375	1000/1250
1000GF-C50	400/230	50	3 phases 4 wires	0.8 lagging	1985	1100/1375	1000/1250
1000GF-C50	380/220	50	3 phases 4 wires	0.8 lagging	2089	1100/1375	1000/1250

ENGINE SPECIFICATIONS

ENGINE PARAMETERS

Manufacturer / Model	Cummins KTA50-G3, 4-cycle
Air Intake System	Turbo, air / water cooling
Fuel System	PT type fuel pump, EFC
Cylinder Arrangement	16 in “V”
Engine Displacement	50.3L
Bore*Stroke	159*159(mm)
Compression Ration	13.9：1
Rated Speed (RPM)	1500rpm
Engine Max Power	1227KW
Governor Type	Electronic

FUEL CONSUMPTION

100% Load	202 g/kw.h
75% Load	206 g/kw.h
50% Load	215 g/kw.h

LUBE SYSTEM

Lube Consumption	≤ 4 g/kw.h
Oil Pressure At Rated Speed	345 ~ 483 kPa

ALTERNATOR SPECIFICATIONS

Number Of Phases	3
Connection Type	3 phase 4 wires, Y type connection
Bearing Numbers	1
Power Factor (cosφ)	0.8 (lagging)
Protection Grade	IP23
Altitude	≤ 1000 meters
Excitation Mode	Brushless, self exciting
Insulation Grade	H
Rated Capacity	1250 KVA
Alternator Efficiency	94.8%

CONTROL PANEL FEATURES ( DSE7320 MKII Auto Mains Failure / UTILITY CONTROL MODULE )

Configurable power-up mode.
MPU fail delay.
Drag and drop advanced PLC editor.
CAN support for the DSEA108 AVR.
Closed transition support with check sync.
Mains (utility) and generator breaker alarms.
Open transition support with check sync.
Crank disconnect on generator voltage.
Oil pressure disconnect delay.
DSE25XX MKII supported over DSENet®.
Charge alternator disable functionality.
3 digital input functions added to allow ECU specific operations.
Comprehensive monitoring of the mains (utility) supply and auto changeover.
4-line back-lit LCD text display
Configurable analogue / digital inputs (6)
Configurable outputs (8)
Tier 4 CAN engine support.
Manual fuel pump control.
Power monitoring (kW h, kVAr, kv Ah, kV Ar h), reverse power protection, kW overload protection.
Mains monitoring and automatic start and changeover to generator power in the event of a mains (utility) out of limits or failure.
Configurable CT positioning.
Customisable power up text and images
Support for 0-10 V & 4-20mA oil pressure senders.
Can be configured for use as a remote display module
Single product can be used for dual functionality.

DIMENSION & WEIGHT

Open type size ( with base fuel tank)	4950*2060*2350 (mm)
Gross Weight	9600 kg

MANUFACTURING STANDARDS

All our diesel generator are designed and manufactured in accordance with international standards, such as EN60O34, BS50O0, IEC34-1, GB755, VDE0530, CSA22.2, AS1359, as well as the requirements of ISO9001 and ISO14O01.

SUPPLY SCOPE

1. Cummins KTA50-G3 engine
2. Alternator
3. DSE7320 MKII control panel
4. standard radiator mounted on skid
5. high grade steel base frame (optional base fuel tank )
6. electronic governor
7. battery charger
8. cranking motor
9. english operation manual,maintenance and test reports.
10. accessories: rubber anti-vibrator, muffler, elbow, expansion joints, battery cables, battery

NOTICE

Pictures associated with this page for illustration only, it may not reflect the actual product, please contact us to get actual product image. Above technical specifications for reference only, we reserved the rights to change the configuration without notify website visitors, please contact our sales or technical team for final confirmation.
