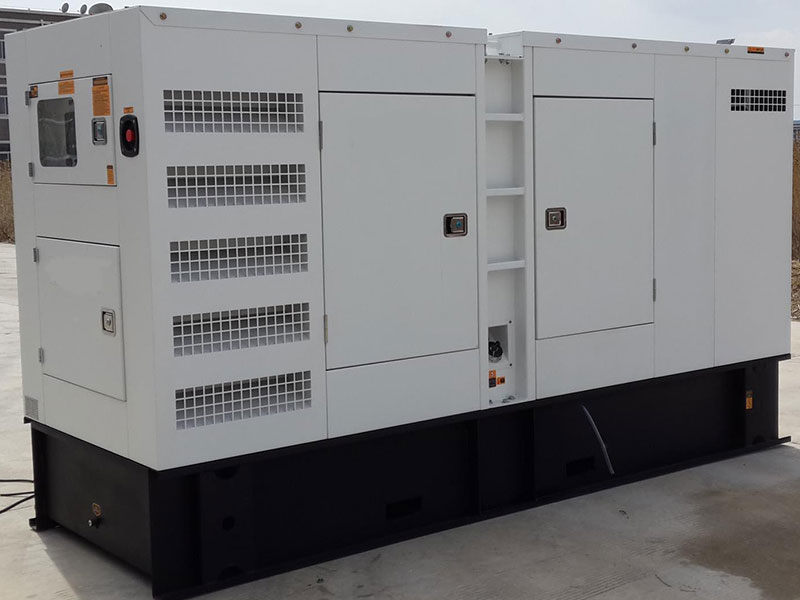

Silent 50Hz 125kw 156kva Cummins 6BTAA5.9-G2 engine diesel generator set
OEM silent 50Hz 125kw 156kva Cummins engine diesel power generator set, powered with Cummins 6BTAA5.9-G2 engine, elastic coupling with Leroy Somer alternator, optional Deepsea 6020 control panel, suitable for Armenia and other countries. Please don’t hesitate to contact Gosun once you have generator set order.
Technical Specifications
GENERATOR SET OUTPUT INFORMATION
| Model No. | Voltage | Hz | Phase & Wires | Power Factor (cosφ) |
Standby Current ( A) |
Standby Power ( KW / KVA ) |
Rated Power ( KW / KVA) |
| 125GF-C50 | 440/254 | 50 | 3 phases 4 wires | 0.8 lagging | 223 | 136/170 | 125/156 |
| 125GF-C50 | 415/240 | 50 | 3 phases 4 wires | 0.8 lagging | 237 | 136/170 | 125/156 |
| 125GF-C50 | 400/230 | 50 | 3 phases 4 wires | 0.8 lagging | 245 | 136/170 | 125/156 |
| 125GF-C50 | 380/220 | 50 | 3 phases 4 wires | 0.8 lagging | 258 | 136/170 | 125/156 |
ENGINE SPECIFICATIONS
ENGINE PARAMETERS
| Manufacturer / Model | Cummins 6BTAA5.9-G2, 4-cycle |
| Air Intake System | Trubo, air / water cooling |
| Fuel System | P7100 type fuel pump |
| Cylinder Arrangement | 6 in line |
| Engine Displacement | 5.9 L |
| Bore*Stroke | 102*120 (mm) |
| Compression Ration | 17.3：1 |
| Rated Speed (RPM) | 1500rpm |
| Engine Max Power | 155 KW |
| Governor Type | Electronic |
FUEL CONSUMPTION
| 100% Load | 203 g/kw.h |
| 75% Load | 202 g/kw.h |
| 50% Load | 207 g/kw.h |
LUBE SYSTEM
| Lube Consumption | ≤ 4 g/kw.h |
| Oil Pressure At Rated Speed | 345 kPa |
ALTERNATOR SPECIFICATIONS
| Number Of Phases | 3 |
| Connection Type | 3 phase 4 wires, Y type connection |
| Bearing Numbers | 1 |
| Power Factor (cosφ) | 0.8 (lagging) |
| Protection Grade | IP23 |
| Altitude | ≤ 1000 meters |
| Excitation Mode | Brushless, self exciting |
| Insulation Grade | H |
| Rated Capacity | 160 KVA |
| Alternator Efficiency | 92.3% |
CONTROL PANEL FEATURES ( DSE7320 MKII AUTO MAINS FAILURE / UTILITY CONTROL MODULE )
Support for O-10 V & 4-20mA oil pressure senders.
Large back-lit icon LCD display.
Heated display option.
3-phase generator sensing.
3-phase generator and mains (utility) sensing
Breaker control buttons on front fascia.
Generator & load power monitoring (kW, kV A, kV Ar, pf).
Generator overload protection (kW).
Generator/load current monitoring & protection
Configurable analogue/digital inputs.
Configurable DC, volt- free and staged loading outputs.
CAN, MPU & alternator speed sensing ( selectable depending on engine type).
Tier 4 CAN engine support.
NOISE LEVEL
| @ 7 meters | 68~75 DB |
DIMENSION & WEIGHT
| Silent type size | 3250*1170*1800 (mm) |
| Gross Weight | 2190 kg |
MANUFACTURING STANDARDS
All our diesel generator are designed and manufactured in accordance with international standards, such as EN60O34, BS50O0, IEC34-1, GB755, VDE0530, CSA22.2, AS1359, as well as the requirements of ISO9001 and ISO14O01.
SUPPLY SCOPE
1. Cummins 6BTAA5.9-G2 engine
2. Alternator
3. DSE7320 MKII control panel
4. standard radiator mounted on skid
5. high grade steel base frame (optional base fuel tank )
6. electronic governor
7. battery charger
8. cranking motor
9. english operation manual, maintenance and test reports.
10. accessories: rubber anti-vibrator, muffler, elbow, expansion joints, battery cables, battery
NOTICE
Pictures associated with this page are for illustration only, they may not reflect the actual product, please contact us to get the actual product image. The above technical specifications are for reference only, we reserved the right to change the configuration without notifying website visitors, please contact our sales or technical team for final confirmation.
